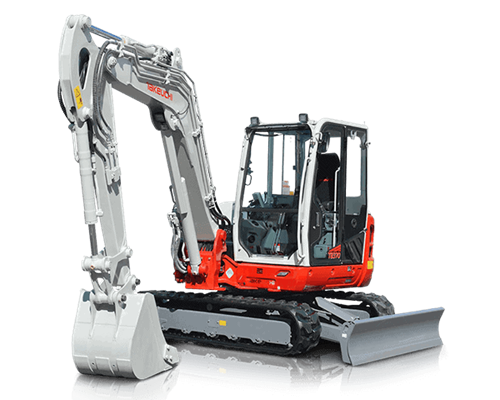

The 2024 Takeuchi TB350R-CR Compact Excavator is a powerful and highly maneuverable 5-ton class machine designed for a wide range of construction, landscaping, and utility projects.
As the first short tail swing model in Takeuchi's five-ton class, it features an ultra-compact rear swing overhang of just 2.95 inches, allowing operators to work confidently in confined spaces near structures and obstacles .
Powered by a quiet and dependable Kubota V2607-CR-E5B engine that delivers 41.7 net horsepower, this Tier 4 Final compliant excavator requires no DPF, simplifying maintenance and reducing operating costs.
Whether you choose the canopy or cab configuration, the TB350R delivers impressive bucket breakout force, high-flow auxiliary hydraulics, and a standard long arm for greater dig depth and reach, making it an exceptional choice for rental fleets and contractors who demand performance, durability, and operator comfort.
Key Specifications:
| Operating Weight (Canopy) | 10,980 lbs (4,980 kg) |
| Operating Weight (Cab) | 11,235 lbs (5,095 kg) |
| Engine Model | Kubota V2607-CR-E5B |
| Engine Power | 41.7 hp @ 2,000 rpm |
| Displacement | 159.6 cu in (2.6 L) |
| Maximum Torque | 132.8 ft-lb @ 1,500 rpm |
| Bucket Breakout Force | 10,431 lbf (46.4 kN) |
| Arm Crowd Force | 5,040 lbf (22.4 kN) |
| Traction Force | 12,320 lbf (54.8 kN) |
| Max Digging Depth | 11 ft 8.8 in (3.58 m) |
| Max Reach at Ground Level | 19 ft 5.2 in (5.92 m) |
| Max Dumping Height | 12 ft 11.3 in (3.94 m) |
| Tail Swing Radius | 3 ft 6.3 in (1.07 m) |
| Front Swing Radius | 8 ft 3.7 in (2.53 m) |
| Transport Length | 17 ft 8.2 in (5.39 m) |
| Transport Height | 8 ft 5 in (2.57 m) |
| Undercarriage Width | 6 ft 6.7 in (2.0 m) |
| Ground Clearance | 13.2 in (335 mm) |
| Fuel Tank Capacity | 14.6 gal (55.3 L) |
| Total Hydraulic Flow | 38.5 gpm (145.7 L/min) |
| Auxiliary Flow (Primary) | 24.6 gpm (93.1 L/min) |
| Hydraulic System Pressure | 3,480 psi (24 MPa) |
| Max Travel Speed (High) | 3.1 mph (5.0 km/h) |
| Slew Speed | 8.9 rpm |
Top Features of the 2024 Takeuchi TB350R-CR Compact Excavator
-
Ultra-Short Tail Swing: With a rear swing overhang of just 2.95 inches, operators can work confidently in confined spaces near structures, walls, and other obstacles without worrying about rear-swing impacts.
-
Powerful & Efficient Engine: Equipped with a Kubota V2607-CR-E5B engine delivering 41.7 hp and over 130 ft-lb of torque, this Tier 4 Final compliant engine requires no DPF for simplified maintenanc.
-
High-Flow Auxiliary Hydraulics: Delivers up to 24.6 gpm (93 L/min) of auxiliary flow, enabling the use of a wide variety of hydraulically driven attachments such as breakers, augers, and compactors.
-
Operator-Focused Cab: Features a deluxe high-back six-way-adjustable suspension seat, low-effort pilot controls, and a large 7-inch touchscreen multifunction color monitor with integrated HVAC, radio, and attachment control functions.
-
Exceptional Digging Performance: Provides 10,431 lbs of bucket breakout force and a maximum digging depth of 11 ft 8.8 in (3.58 m), making it capable of handling demanding excavation tasks .
-
Long Arm with Thumb Mount: Standard long arm with integrated thumb mount delivers a wide working range, impressive dig depth, and simplifies hydraulic thumb installation.
-
Durable All-Steel Construction: Heavy-duty blade design, oversized components, triple flange track rollers, and a large wrap-around counterweight protect vital components and ensure longevity.
-
Excellent Service Access: A lockable swing-out rear engine door and a right-side cover that opens overhead provide exceptional access to daily inspection and maintenance points.
-
Takeuchi Fleet Management (TFM): Standard telematics system provides remote diagnostics, utilization tracking, geofencing, and proactive maintenance reminders to minimize downtime and control costs.
-
Load Sensing Two-Speed Travel: Automatically downshifts from high speed to low speed when turning, pushing with the backfill blade, or traveling up an incline for optimal performance.
